Stauff SS-100-E-20-B/4 Replaces the Stauff SS100E20B4
Stauff SS-100-E-20-B/4 Replaces the Stauff SS100E20B4
SS-100-E-20-B/4
Stauff
Stauff SS100E20B4
Stauff
Stauff SS100E20B4
Description

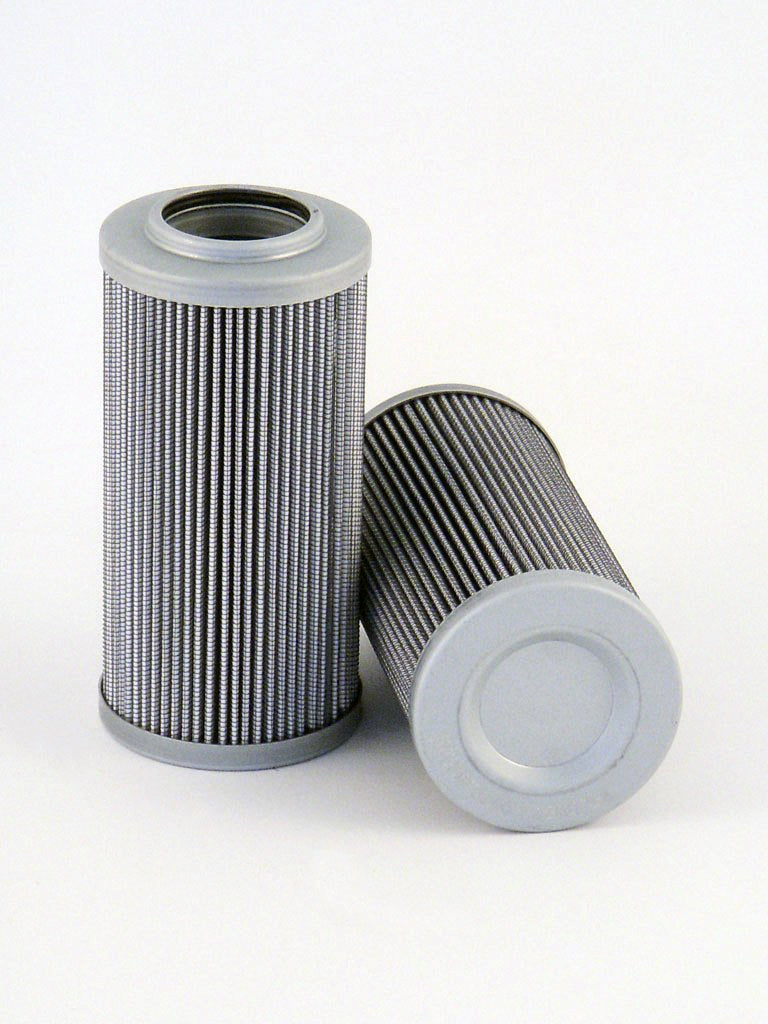

Replacement Filter Element for Pressure Filters Micron Rating: 20 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 79,8 Inner Diameter (mm): 42,2 Length (mm): 250 Sealing: NBR, β ratio >200
Brand:
Stauff
$186.00
| UNITS | PER UNIT |
|---|---|
| 2 - 4 | $182.28 |
| 5 - 9 | $178.56 |
| 10 - + | $174.84 |
0.87 kg
8421.99.90
Germany
Description
Replacement Filter Element for Pressure Filters Micron Rating: 20 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 79,8 Inner Diameter (mm): 42,2 Length (mm): 250 Sealing: NBR, β ratio >200Specification
| Style | Pressure Filter |
| Efficiency 1 | 20µ @ β200 |
| Efficiency 2 | 22µ @ β1000 |
| Outer Diameter | 80.0 mm |
| Inner Diameter | 42.2 mm |
| Length | 248.0 mm |
| Media | Glass Fiber |
| Flow Direction | OUT-IN |
| Δ Collapse Pressure | 30 BAR |
| Seal Material | Nitrile |
| Temperature Range | -30 - +100°C |
