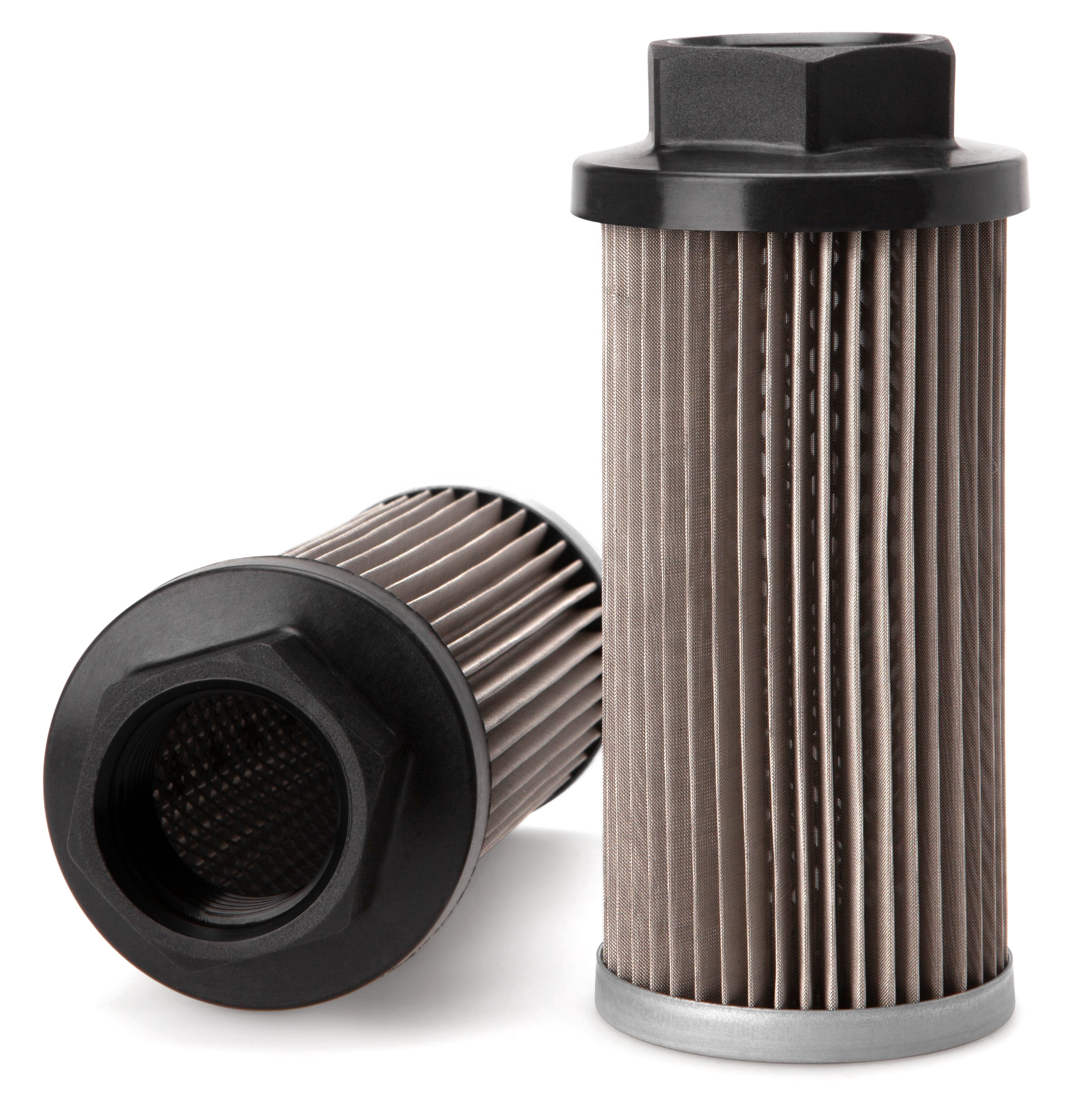

Fleetguard HF7444 Replacement Suction Strainer

Fleetguard HF7444
Fleetguard HF7444
Representative product image Product image feedback

Fleetguard HF7444 Suction Strainer

Brand: Fleetguard
Description

Fleetguard® HF7444 hydraulic cartridge filter with wire mesh media is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.

Price Match
$39.00
0.17 kg
0.0008 m³
United States
8421.99.90
0.19 kg
0.0006 m³
Italy
8421.99.90
0.16 kg
0.0009 m³
France
8421.99.90
Germany
8421.99.90
0.29 kg
0.001 m³
8421.29.80.90
8421.99.90
8421.99.90
0.31 kg
United Kingdom
8421.99.90
Shipping Terms

Description

Fleetguard® HF7444 hydraulic cartridge filter with wire mesh media is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.

Specification

StyleSuction Strainer
MediaWire Mesh
Efficiency 1125µ
Outer Diameter 64.0 mm
Length 139.0 mm
Thread1" BSP
Δ Collapse Pressure 1 bar
Temperature Range -30 - +100°C
Fleetguard Brand Logo

Fleetguard Product

Genuine Fleetguard HF7444

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Fleetguard Warranty

Fleetguard Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
125µ
Efficiency 2
Style Suction Strainer
Outer Diameter 64.0 mm
Inner Diameter
Length 139.0 mm
Media Type Wire Mesh
Flow Direction OUT-IN
Thread 1" BSP
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 1 BAR
Seal
Temperature Range -30 - +100°C
